Behind-the-Scenes with Davi: Assembling a Heavy-Duty 4-Roll

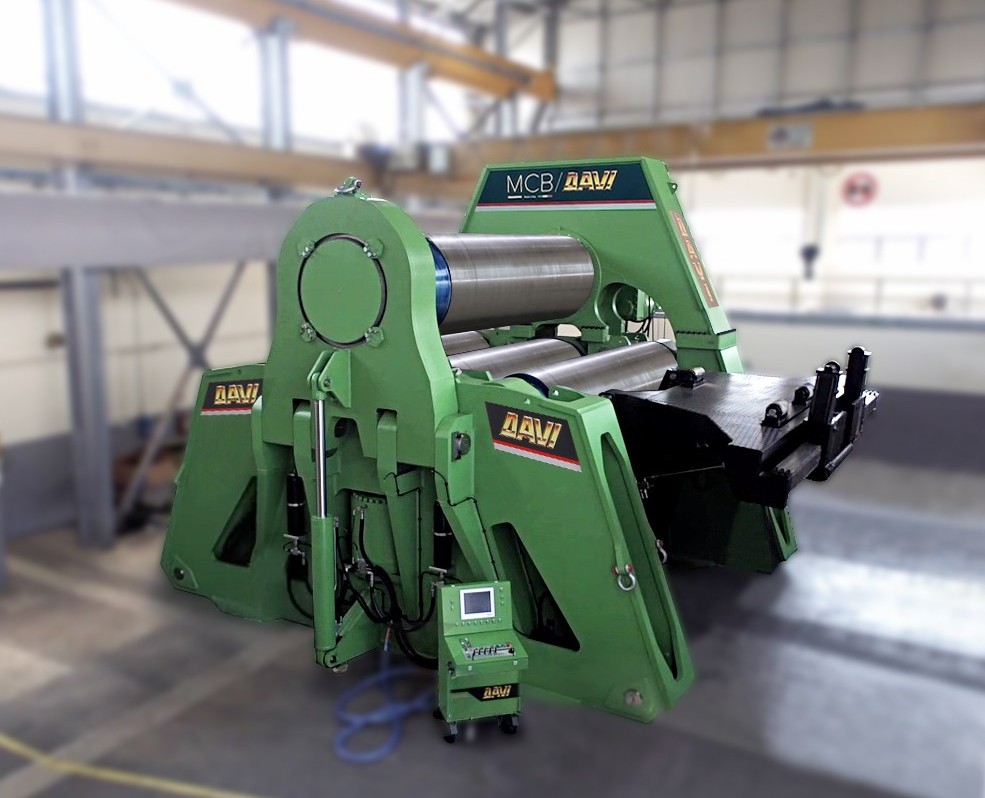

Heavy-duty 4-roll MCB plate rolls are machines of modern engineering, designed to handle the rigorous demands of the offshore wind energy sector. Our MCB plate rolls play a critical role in rolling metal plates into cylindrical and conical forms, which are essential components of wind towers and foundations. They are indispensable in the manufacturing process.

Assembling a Heavy-Duty MCB Plate Roll
Assembling a heavy-duty 4-roll MCB plate roll is a meticulous process that requires precision and expertise. The following steps outline the assembly process:

• Base Frame Installation: The base frame is carefully positioned and secured to the grounf, ensuring alignment and stability.
• Rolls Placement: The four rolls are then placed on the frame. Each roll must be accurately aligned to interact seamlessly with the others.
• Hydraulic System Setup: The hydraulic system, which controls the movement of the rolls, is installed and tested for functionality.
• Electrical Connections: Electrical components are connected, including the control panel that allows operators to manage the machine’s functions.
• Final Calibration: The assembled machine undergoes rigorous testing and calibration to ensure all parts operate in harmony.

Disassembling Process: Challenges and Solutions
Disassembling a 4-roll MCB plate roll is as complex as its assembly. The process involves several challenges, such as:

• Component Weight: The heavy components require specialized lifting equipment and careful handling to prevent damage.
• Alignment Precision: Maintaining the alignment of parts during disassembly is crucial to ensure they can be reassembled correctly.
• Hydraulic System Handling: The hydraulic system components must be depressurized and handled with care to avoid leaks or contamination.

Solutions to these challenges include using advanced lifting equipment, documentation of the original assembly, and employing experienced technicians who understand deeply the machine.

Behind-the-Scenes Timelapse
This timelapse video offers a visual journey into the assembly and disassembly of a heavy-duty 4-roll MCB plate roll. This behind-the-scenes footage showcases the steps involved, from the initial preparation to the final calibration. Watching the process at an accelerated pace highlights the engineering prowess and teamwork required to bring such a complex machine to life. Each step of the process demands collaboration among engineers, technicians, and operators. Their combined expertise ensures that the machine operates at peak efficiency, contributing to the advancement of the offshore wind energy sector. Through detailed steps, innovative solutions, and a focus on engineering excellence, we ensure that these machines perform reliably in demanding environments.
