TWD Proved Higher MP Friction

Over the course of the last years TWD developed an advanced friction measurement method and probabilistic verification of monopile stability during transit. Both have now received certification from DNVGL. This sets a new standard in monopile seafastening.

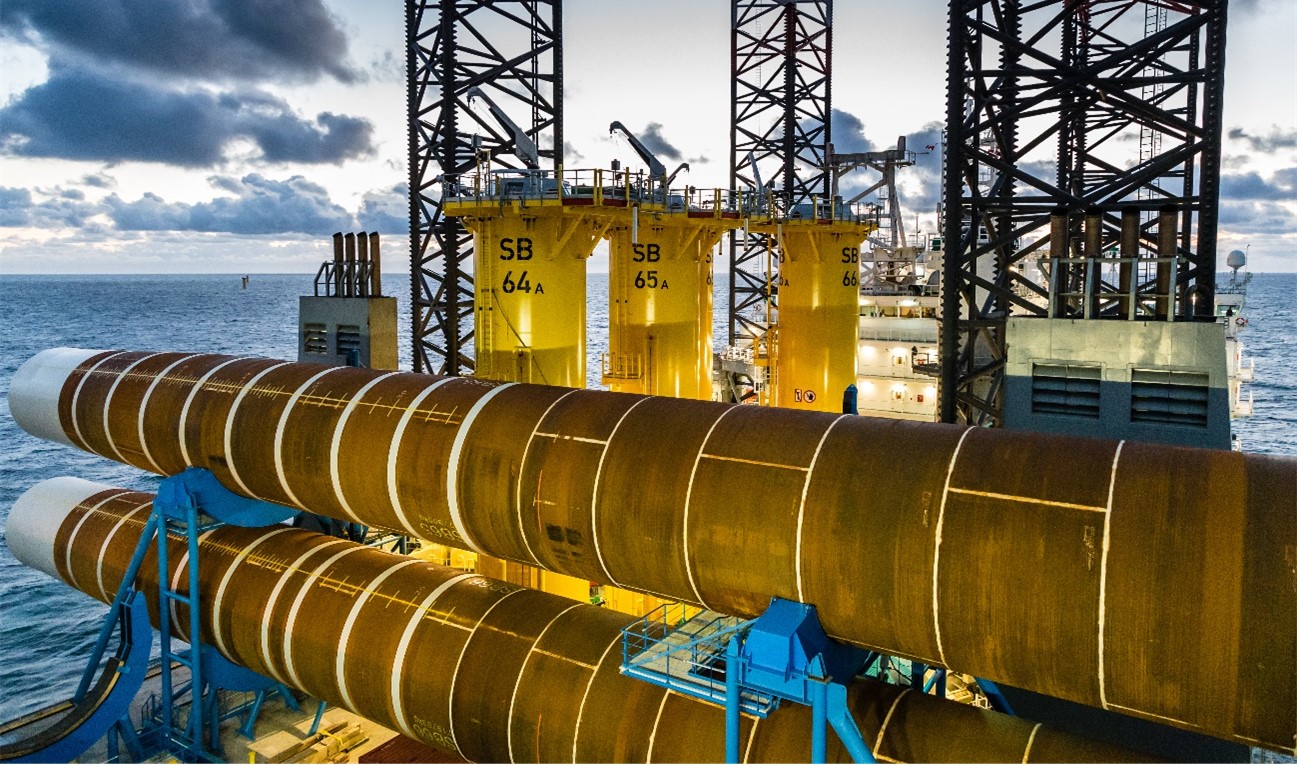

Seafastening of future monopiles on heavy lift installation vessels becomes an ever-increasing challenge. One challenge is verification of monopile stability on its supports at high vessel accelerations. With this recently certified method, engineers at TWD are able to increase the workability of designs, while making them safer and more cost-effective.

The optimized methodology results in the ability to increase workability by 20-50% whilst maintaining the highest safety standards.

The offshore wind industry ventures into unexplored territories where severe environmental conditions become the new standard. TWD can use the developed method in future projects related to transatlantic transport or in areas where installation is more challenging than the north sea. TWDs verification method and friction test set-up makes the difference in guaranteeing the stability of monopiles of the future during transit.

This embedded content is only visible after accepting cookies.

Introduction

Seafastening large diameter monopiles (MPs) on heavy lift installation vessels becomes an ever-increasing challenge.

One of the main design challenges is verification of monopile fixation on the friction-based interface at its supports. The offshore wind industry moves into new territories where more severe environmental conditions occur. Finding solutions for the fixation verification of a seafastened monopile becomes a design challenge of increased interest.

This article elaborates on a method of probabilistic verification of the fixation of MPs developed by TWD. It combines a verified tailor-made static friction test set-up (Ref. 2), calculation methods according to industry standards (Ref. 7) and advanced insights in the variability of the coefficient of friction at the interfaces (Ref. 4). Both input, calculation method as well as outcomes and a case study are presented.

Calculation method

Monopile stability can be verified with a relatively straightforward hand calculation based on the schematic presented in Figure 1 and Ref. 7. Design accelerations (a, ay­, αz) are applied to determine the support reactions at the coated and uncoated interface of the monopile, often at starboard (STBD) and portside (PS) (FZ,STBD and FZ,PS). The sum of the support reactions multiplied by their respective coefficients of friction (μSTBD and μPS)  is the total resistance against sliding. A straightforward unity check is the outcome of this analysis (see Ref. 7 for an example). TWD uses additional finite element modelling to improve this model with incorporation of the effect of the shape of the support and global pile deformation.

Figure 1, Representation of the conventional deterministic verification of monopile stability based on friction
Figure 1, Representation of the conventional deterministic verification of monopile stability based on friction

Measurements

Contrary to widely held belief, friction is a system behavior and not a material characteristic. Therefore, it is important to perform verification measurements of the coefficients of friction used in design. This is particularly the case for interfaces with rubber and polyurethane as their friction depends on a number of parameters. TWD developed a DNVGL verified static friction measurement set-up (Ref. 8). It simulates an actual design case and measures static and dynamic friction between monopile steel (coated and uncoated) and the support material considered (Figure 2).

The coefficient of friction is subsequently determined from the output of the measurements performed. Often the peak of static friction is easily observed in the output data (see Figure 3). Over the course of a year TWD performed over 200 tests to investigate material behavior and optimize the method of testing.

Probabilistic assessment

Current standards do provide guidelines for testing on friction, material factors to incorporate and selecting governing upper- and lower bounds (Ref. 1). Although these guidelines are clear, it is apparent that they are generic and not aimed at a specific problem such as monopile seafastening. A probabilistic assessment was undertaken to verify the safety of this approach. Figure 2 shows the setup of the analysis.

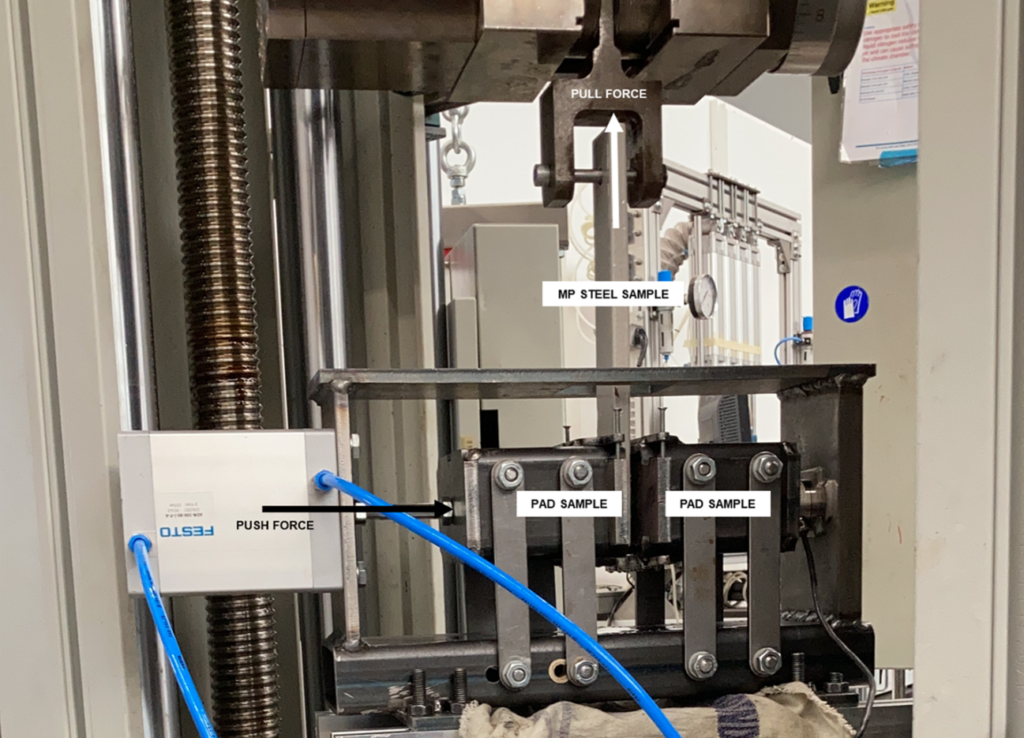

Figure 2, Friction test set-up and measurement (checked by DNVGL, Ref. 2)
Figure 2, Friction test set-up and measurement (checked by DNVGL, Ref. 2)

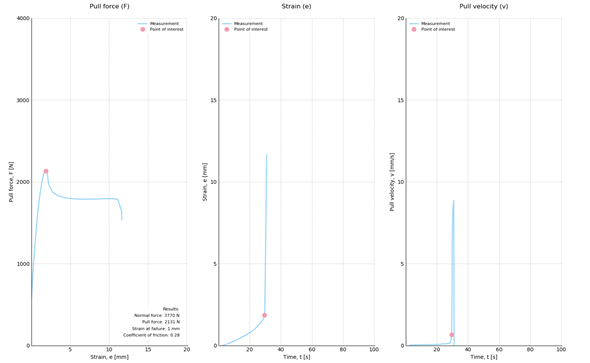

Figure 3, Analysis of observed coefficient of friction from measurements obtained in one test (Ref. 4)
Figure 3, Analysis of observed coefficient of friction from measurements obtained in one test (Ref. 4)
Figure 4, Probabilistic assessment of friction
Figure 4, Probabilistic assessment of friction

Tests were performed for both the interface at the coated and uncoated part of a MP (see Section 2). By performing significantly more tests than necessary (as required by Ref. 1) the outliers are captured and a probability density function can be fitted through the observed data. Due to the amount of measurements the fit of this distribution is of high quality. Figure 5 shows the frictional behavior for one material at the uncoated steel of the monopile. By performing a bootstrap analysis insight is gained in the expected distribution of the variability of the coefficient of friction over the entire support at each side of the monopile.

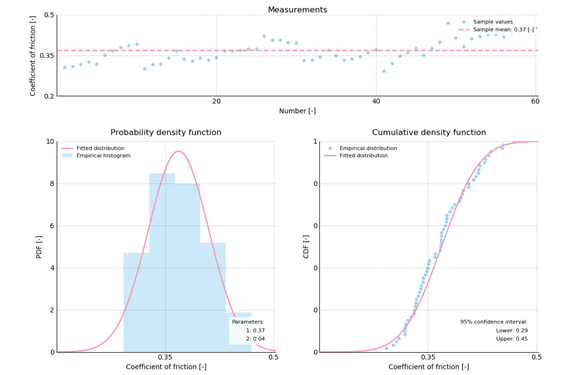

Figure 5, Probability density function of coefficient of friction uncoated steel and PU material
Figure 5, Probability density function of coefficient of friction uncoated steel and PU material

At this point all information required to perform a direct reliability analysis is available.

The accelerations used are typical for future floating installation vessels in transit and survival conditions. Variability on sway, heave and roll acceleration, friction at STBD (non-coated interface) and friction at PS (coated interface) are implemented in this analysis. A standard deviation of 1% of the mean is applied on design accelerations to account for uncertainty in these estimates.

The strictest target safety level of 10-6 is selected as a benchmark for verification of stability (Ref. 5 & Ref. 6). In total  5 x 106 independent calculations of the friction check are performed in a Monte Carlo analysis. For each of them random samples are retrieved from the distributions. Every time the unity check is calculated and stored. Figure 6 shows the outcome of all these individual checks. It is visible that the unity checks lower significantly with respect to the deterministic approach (the difference can be up to 20-50%).

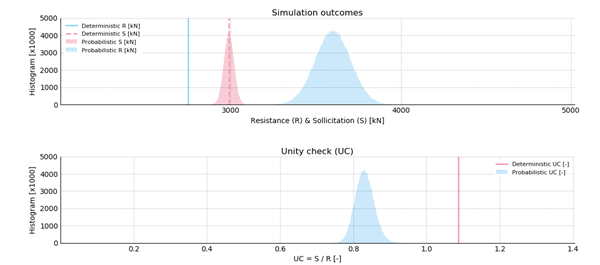

Figure 6, Direct reliability analysis of friction verification (including deterministic input, Ref. 7) (for input see Table 1)
Figure 6, Direct reliability analysis of friction verification (including deterministic input, Ref. 7) (for input see Table 1)

Conclusion

The stability of a seafastened MP with frictional supports can be verified based on a probabilistic analysis based on measured variability of the coefficient of friction. TWD proposes this method as an alternative to existing methodologies. This will help assuring accurate assessment of the actual limitations and lead to safer and more workable designs.

References

References can be made available upon request.

1. DNVGL-ST-N001, Marine operations and marine warranty (Edition 2019)

2. A0917951-001 Verification of friction test setup and probabilistic friction verfication

3. Anonymized but representative input data of a MP seafastening project

4. Measurements on friction between MP steel (coated/uncoated) poly-urethane material (08-05-2020)

5. DNV Classification Notes No. 30.6 Structural reliability analysis of marine structures

6. ISO2394 – General principles on reliability for structures

7. TWD-NL-2019-367-C-001, Deterministic friction verification of MP seafastening

8. TWD-NL-2020-367-M-02-REV-0, Friction test procedure
